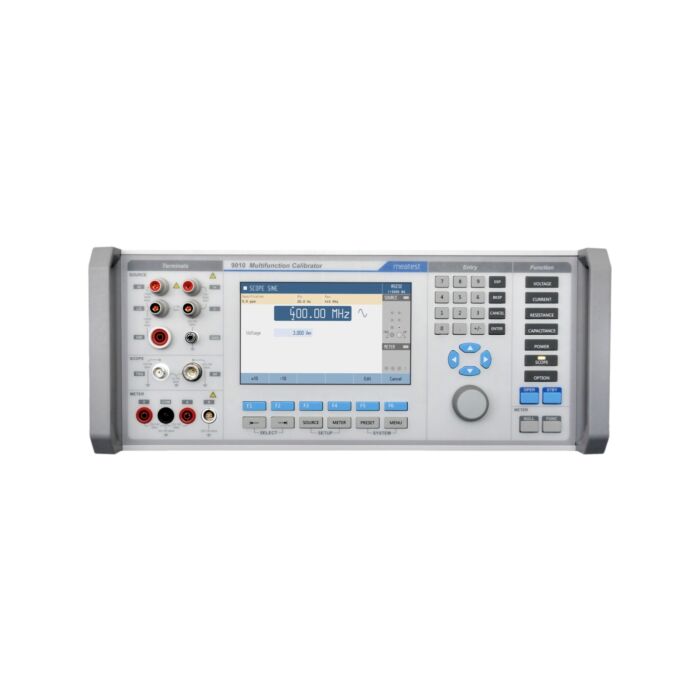

Meatest 9010 Multifunction Calibrator 35 ppm
kr 0,00 kr 0,00
Varenummer
101208
35 ppm AC/DC multifunction calibrator for multimeters, power meters and generally all kinds of electric meters. Implementing modular design, 9010 can be further customized to calibrate oscilloscopes, insulation testers, sources and transducers.
Multifunction calibrator 9010 is designed as universal calibration tool for electrical calibration laboratories, covering most of their workload like multimeters, clamp meters, ohm meters, power meters and power analysers, energy meters, transducers, insulation testers, process meters, scopes and many others. High load capacity of voltage output (up to 50 mA) allows for calibration of high-consumption analogue meters. Installed harmonic and non-harmonic shape signals allow for testing meter sensitivity to distorted signals by a signal with various crest factor. Advancing from previous M14x calibrator series, 9010 can now calibrate even 400 MHz scopes, 1.5 kV insulation testers and 287 kW power meters. On the other hand we kept all the popular functions including complete transducer and external sensor calibration (strain gauge, pressure, torsion, force, etc.) using built-in multimeter, automatic uncertainty calculation, remote control and easy recalibration.
Built-in multimeter
Internal multimeter with basic capability to measure VDC, IDC, R and F process signals is optionally available in 9010. Meter functions can run simultaneously with source functions to measure and evaluate output signals of various types of transducers as well as external sensors (strain gauge, pressure, torsion, force, etc.).
User comfort
9010 calibrator is focused on user friendliness making calibrations simple and straightforward. Each function has its dedicated chunky button and all relevant details like total uncertainty, limits or connection scheme are shown on large LCD. Relative deviation feature can help you with UUT error calculation and this intuitive user environment will even allow you to adjust all internal functions and ranges with no additional equipment.
9010 can be operated remotely via GPIB or RS-232 and can be used both in custom automated solutions (complete communication API is described in user manual) or in WinQbase/Caliber automated calibration systems featuring automated optical UUT readouts.
Upgrade options
Customers using 9010 Multifunction Calibrators with serial numbers 750381 and higher can request upgrade to 9010+ Multifunction Calibrator. Upgrades will be done in Meatest CZ with 6 week average lead time, starting in November 2022.
9010 internal options SCO, HVR, MER can be retrofitted at any time. Ask your local Meatest representative for lead times and pricing.
Specifications
| DC voltage | 0 - 1050 V ± 35 ppm / year |
| AC voltage | 1 mV - 1050 V, 15 Hz - 300 kHz sinusoidal & non-sinusoidal waveforms, harmonics ± 250 ppm / year |
| DC current | 0 - 20.5 A (1025 A with 140-50 Current Coil) ± 150 ppm / year |
| AC current | 10 uA - 20.5 A, 15 Hz - 10 kHz (1025 A with 140-50 Current Coil) sinusoidal & non-sinusoidal waveforms, harmonics ± 500 ppm / year |
| DC Power & Energy | 40 uW - 5.74 kW (287 kW with 140-50 Current Coil) ± 210 ppm / year |
| AC Power & Energy | 40 uW - 5.74 kW, 15 - 1000 Hz (287 kW with 140-50 Current Coil) 50 harmonic products, voltage from current ± 730 ppm / year |
| Resistance | 0 Ω - 1.1 GΩ, resolution 6½ digits ± 15 ppm / year |
| Insulation Resistance | 100 kΩ - 100 GΩ rated up to 1.5 kV |
| Capacitance | 800 pF - 120 mF, resolution 6½ digits ± 0.25 % / year |
| Temperature | TC BCDEG2JKMNRST with cold junction compensation RTD ± 0.03°C / year |
| Frequency | 0.1 Hz - 400 MHz ± 2.5 ppm / year |
Process Multimeter
| DC voltage | 0 - 12 V mVDC resolution down to 10 nV ± 50 ppm / year |
| DC current | 0 - 24 mA ± 150 ppm / year |
| Resistance | 0 Ω - 20 kΩ, resolution 6½ digits ± 200 ppm / year |
| Temperature | TC BCDEG2JKMNRST RTD ± 0.08°C / year |
| Frequency | 1 Hz - 100 kHz ± 50 ppm / year |
| Produsent | Meatest |
|---|---|
| Produktnr | 9010 |
