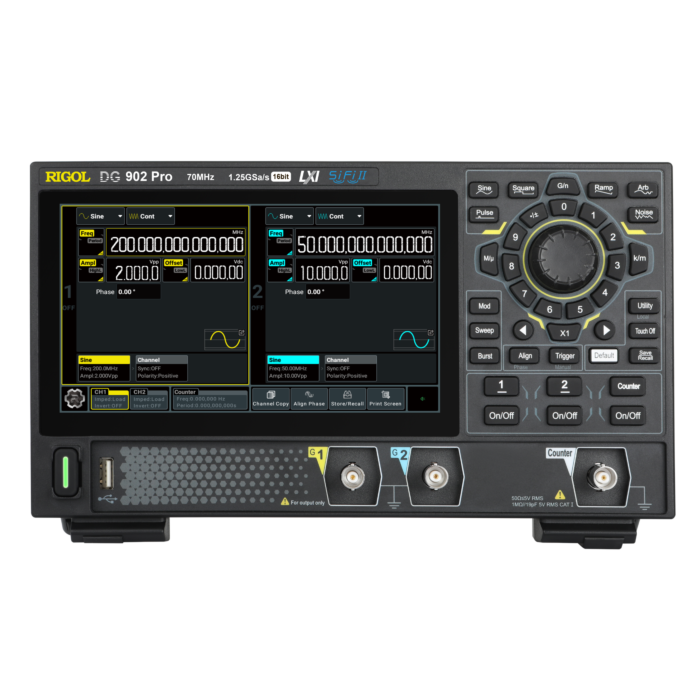

Rigol DG902 Pro 70MHz 2-kanals signalgenerator

Rigol DG900 Pro series Function/Arbitrary Waveform Generator provides up to 1.25 GSa/s sample rate and 16 Mpts/CH memory depth (standard). It is a cost-effective dual-channel function/arbitrary waveform generator that combines multiple functions including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator and frequency counter.

The brand new appearance and user-friendly interface design bring a friendly user experience.

• Max. sample rate: 1.25 GSa/s
• Max. output frequency: 70 MHz
• 16-bit vertical resolution
• Arbitrary waveform editing function with a max. Arb waveform length of 16 Mpts/CH (32 Mpts/CH optional)
• Built-in high-order harmonic generator (max. 20th order)
• Frequency Counter with a max. frequency of 1 GHz
• USB and LAN interfaces for remote connection
• 7" touch screen
• Type-C power interface for powering the instrument with mobile power source, satisfying testing requirements in the field.
• Web server for easy remote control.

7" colour touch screen display
7" colour touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously

Smart appearance
The 266mm (width) x 165mm (height) x 63mm (depth) DG900 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.

Fast rising edge
60MHz square wave and 50MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.

Ultra low signal jitter
Based on RIGOL's SIFI ll technology, the DG900 Pro series can generate any waveform point by point and restore signals without distortion. The sampling rate is precisely adjustable, Compared to traditional DDS signal sources, the generated signal jitter is lower, with all output signal jitter as low as 200ps (rms).

Rich modulation functions
Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.

Sequence function
Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.

Maximum 20th harmonic generation function
Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices

High resolution frequency meter
A 7-bit 1GHz frequency meter can measure the frequency of common high-frequency signals such as VHF and UHF, facilitating relevant debugging

Last ned datablad for Rigol DG900 Pro series
