Rigol DM3058 5,5 siffer multimeter

kr 8 790,00 kr 7 032,00
Varenummer
100700

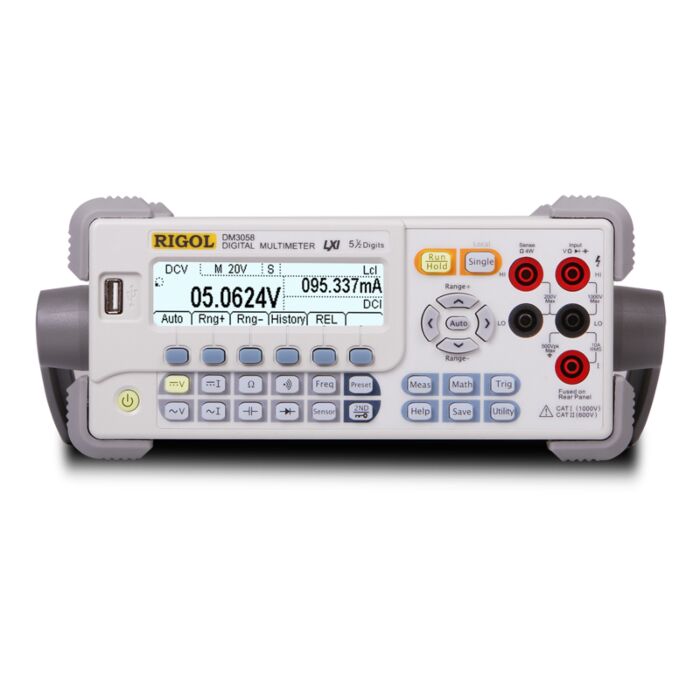

Rigol DM3058 is an economical 5.5-digit digital multimeter. It is designed for the test requirements of high accuracy, multi-function and automatic measurement. It integrates the functions of automatic measurement, multiple mathematical transformations and any sensor measurement. It provides GPIB, LAN, USB and RS232 interfaces.





Function

Range

1Year Accuracy Specifications
± ( % of reading + % of range) (Tcal 23℃ ±5℃ )

sa



DM3068

DM3058/E

DC Voltage

200.000mV ~ 1000.00V

0.0035 + 0.0006

0.015 + 0.003

DC Current

200.000uA ~ 10.0000A

0.030 + 0.003

0.055 + 0.005

AC Voltage (RMS)

200.000mV ~ 750.000V

0.06 + 0.04

0.2 + 0.05

AC Current (RMS)

200.0000uA ~ 10.00000A[1]

0.10 + 0.04

0.30+ 0.10

Resistance

200.000Ω ~ 100.000MΩ

0.010 + 0.001

0.020 + 0.003

Diode Test

2.000V/1mA

0.010 + 0.020

0.05 + 0.01

Continuity Test

2000.0Ω/1mA

0.010 + 0.020

0.05 + 0.01

Period/Frequency

3Hz-1MHz (200mV ~750V)

0.007

0.01+ 0.003

Capacitance

2.000nF ~ 100.0mF[2]

1 + 0.3

1+0.5

Max. Reading Speed



10000 rdgs /s

123 rdgs /s

Volatile Memory



512k readings of history
records

2000 readings of history records

Remote Command



RIGOL, Agilent, FLUKE

RIGOL, Agilent, FLUKE


Mer informasjon
ProdusentRigol
ProduktnrDM3058
