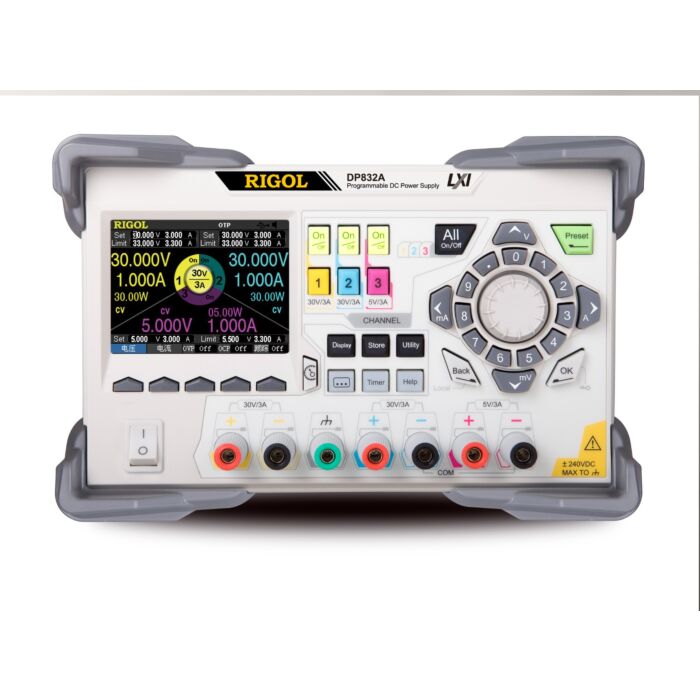

Rigol DP832A 195W 3-kanals strømforsyning, 1mV / 1mA oppløsning
kr 9 270,00 kr 7 416,00
Varenummer
100709
- 3 outputs, maximum power output 195W
- Voltage / Current CH1:0 - +30 V / 0 - 3 A
- Voltage / Current CH2:0 - +30 V / 0 - 3 A
- Voltage / Current CH3:0 - +5 V / 0 - 3 A
- Low Ripple and Noise: <350uVrms/2mVpp
- Fast Transient Response Time: < 50us
- Load Regulation Rate: Voltage：< 0.01% + 2mV; Current：< 0.01% + 250uA
- Linear Regulation Rate:Voltage：< 0.01% + 2mV; Current：< 0.01% + 250uA
- Ripples and Noise(20Hz-20MHz):Normal Mode Voltage：<350μVrms/3mVpp; Normal Mode Current：<2mArmss
- Voltage Resolution:1mV/1mV/1mV
- LAN, RS232 and Digital I/O Ports
- Online Monitoring & Analysis Function
- Standard Timing output
- Built-in V, A, W measurements and waveform display
- 3,5 inch TFT display, easy for operation
| Produsent | Rigol |
|---|---|
| Produktnr | DP832A |
| Kanaler | 3 |
| Effekt | 195W |
| Oppløsning | 1mV / 1mA |
| Programmerbar | Ja |
