Rigol DP932U 210W 3-kanals strømforsyning, 10mV / 1mA oppløsning
kr 8 360,00 kr 6 688,00
Varenummer
101442

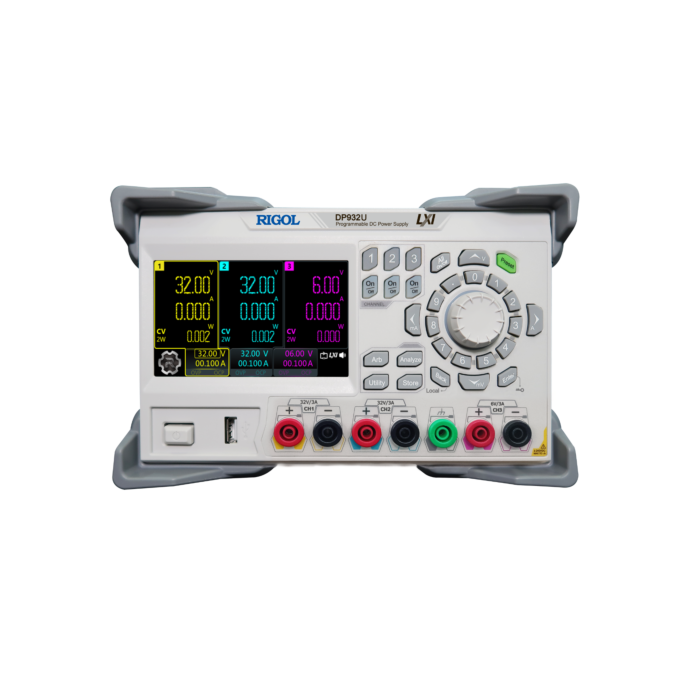

The Rigol DP932U is a affordable programmable DC power supply with three isolated channels (32V/3A, 32V/3A, 6V/3A, 210W total)
The Rigol DP932U is a versatile, programmable DC power supply designed for precision and reliability. Featuring three independent, fully isolated channels (32V/3A, 32V/3A, 6V/3A) with a total output of 210W, it’s ideal for labs, education, and testing applications.
With a 4.3-inch LCD color touchscreen, low ripple noise (<350μVrms/2mVpp), and standard USB/LAN interfaces, the DP932U offers intuitive control and seamless integration.
Equipped with safety sockets and optional upgrades like high-resolution output, it’s a powerful tool for professionals and students alike.
- 3 electrically isolated independent channels with a maximum total power of up to 210 W
- 4.3-inch LCD color touch screen
- Front-panel safety sockets
- Internal series/parallel connections for CH1 and CH2
- Excellent programming/readback accuracy
- Transient response time <50 μs
- Low output ripple and noise <350 μVrms/2 mVpp
- Command processing time <10 ms
- Three rack-units (3U), 1/2-rack form factor
- PC control
- Timing output, data logging and analysis
- A maximum of 512 arbitrary points with dwell time down to 100 ms, various built-in basic
waveforms - Over voltage, over current, and over temperature protection
- Various interfaces available, USB and LAN is standard, Digital I/O is optional.
Produsent | Rigol |
---|---|
Produktnr | DP932U |
Kanaler | 3 |
Effekt | 210W |
Utgangsspenning kanal 1 | 0-32V |
Utgangsstrøm kanal 1 | 0-3A |
Utgangsspenning kanal 2 | 0-32V |
Utgangsstrøm kanal 1 | 0-3A |
Utgangsspenning kanal 3 | 0-6V |
Utgangsstrøm kanal 3 | 0-3A |
Rippel | <350 μVrms / 2 mVpp |
Oppløsning | 10mV / 1mA |
Programmerbar | Ja |
Serie-modus | Ja |
Parallell-modus | Ja |
