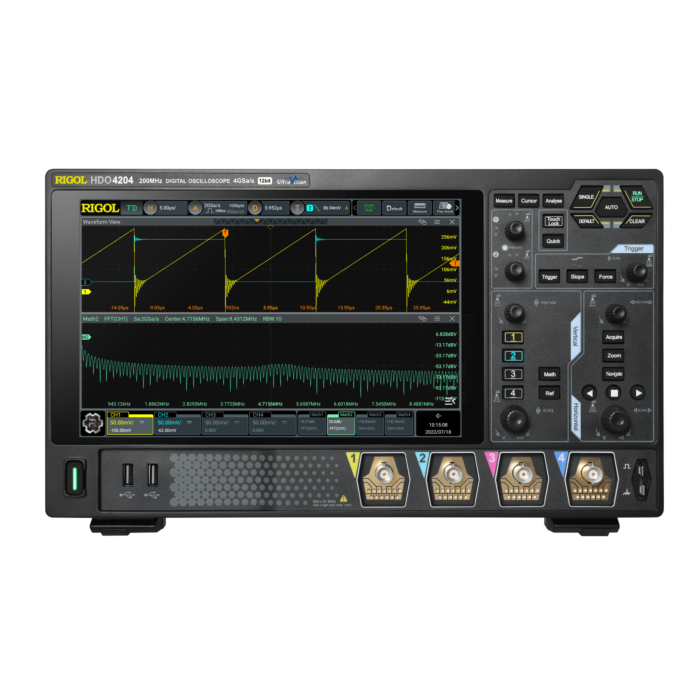

Rigol DHO4204 12-Bit 200MHz 4-kanals oscilloskop

Spesialpris kr 31 985,00 kr 25 588,00 Veil. pris kr 41 515,00

Varenummer

101192

DHO4000 series digital oscilloscope is a high-resolution digital oscilloscope based on RIGOL's "Centaurus" chipset.

Based on the new Rigol "Centaurus" chipset
Bandwidth: 800 MHz
4 analog channels and 1 EXT channel
12-bit vertical resolution
Real-time sample rate up to 4 GSa/s
Ultra-low noise floor at 18 μVrms in minimum
Memory Depth up to 500 Mpts (optional)
Min. vertical sensitivity: 100 μV/div
Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
10.1'' 1280*800 HD touch display
User-friendly Flex Knobs, bringing smoother interaction
Standard photoelectric encoder operating knobs, effectively prolonging its service life
Standard USB Device & Host, LAN, and HDMI interfaces
Optional battery pack in a highly portable package for unlimited freedom
Support online version upgrade

Mer informasjon
Produsent	Rigol
Produktnr	DHO4204
Båndbredde	200 MHz
Capture rate	50,000 wfms/s, 1,500,000 wfms/s (UltraAcquire Mode)
Samplingshastighet	4 GSa/s (single channel), 2 GSa/s (half channels), 1 GSa/s (all channels)
Kanaler	4
Resolution	12-Bit
