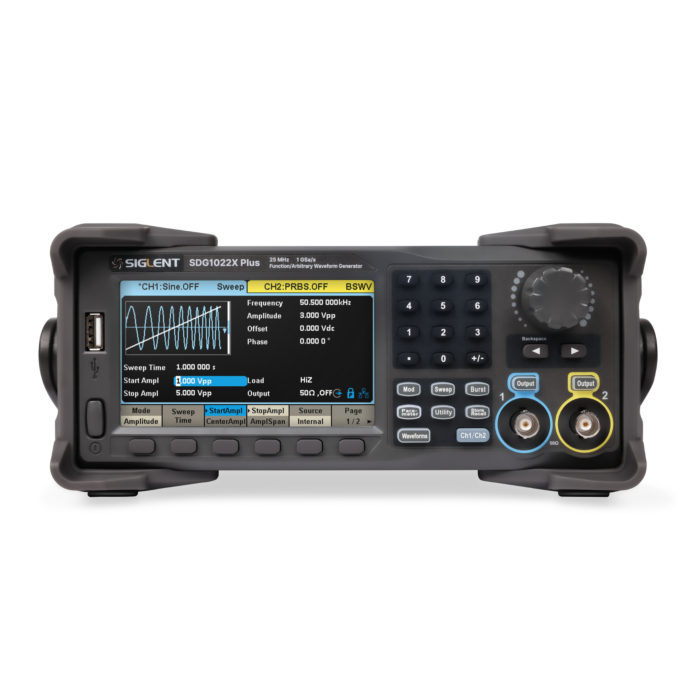

Siglent SDG1022X Plus 25MHz 2-kanals signalgenerator

SIGLENT’s SDG1000X Plus series function/arbitrary waveform generators comes in three dual-channel versions, 25MHz, 30MHz and 60MHz bandwidth.

It features an impressive sampling system with a 1GSa/s sampling rate and 16-bit vertical resolution.

Leveraging traditional DDS technology, it incorporates advanced TrueArb and EasyPulse innovations to address the limitations of DDS in generating arbitrary waveforms and square waves/pulses,  This results in high-fidelity, low-jitter signals for users.

The SDG1000X Plus also offers PRBS pattern generation, sequence wave output, and dual pulse output capabilities, catering to a broader spectrum of application requirements.

Key Features

• Dual channel
• Maximum output amplitude 20 Vpp
• 1 GSa/s Sampling rate
• 16-bit vertical resolution
• Arbitrary wave length 8 Mpts/CH
• Multi-pulse output function
• Supports PRBS up to 40 Mbps
• Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
• Sweep and Burst function
• Harmonic function
• Waveform Combining function
• High precision Frequency Counter
• 196 built-in arbitrary waveforms
• Built-in WebServer supports instrument control via web browser
• Standard interfaces: USB Host, USB Device(USBTMC), LAN (VXI-11)
• 4.3” LCD display

Download datasheet for Siglent SDG1000X Plus series.
