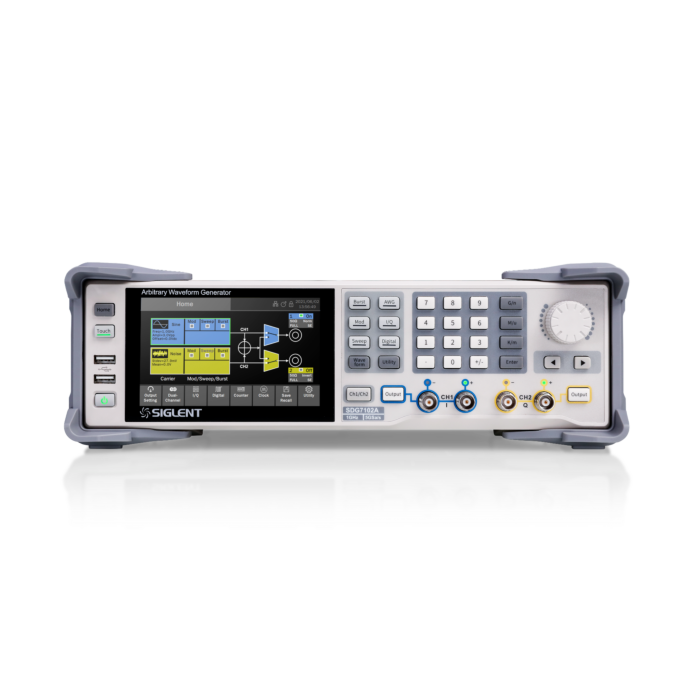

Siglent SDG7102A 1GHz 2-kanals signalgenerator

SIGLENT’s SDG7000A is a family of dual-channel Arbitrary Waveform Generators that feature up to 1 GHz bandwidth, a maximum sample rate of 5 GSa/s, and 14-bit vertical resolution. It can generate arbitrary waveforms point by point with a maximum 2.5 GSa/s sample rate and vector signals with a maximum of 500 MSa/s. It also has the ability to generate a variety of signals such as continuous wave, Pulse, Noise, PRBS patterns, and a 16-bit digital bus. It supports the generation of complex signals such as modulation, sweeping, bursting, and dual-channel copying/coupling/tracking and superposition. The outputs are user selectable for differential or single-ended connections and support a maximum output range of ± 24 V. The instrument can ensure a large amplitude under high-frequency which eliminates an external power amplifier in some applications and addresses a wider range of requirements.

Key Features

• Dual-channel differential/single-ended output，16-bit LVDS/LVTTL digital bus outputs (optional)
• High-performance sampling system with 5 GSa/s sample rate and 14 -bit vertical resolution
• 1 GHz maximum bandwidth
• Generates arbitrary waveform with sample rates of 0.01 Sa/s ~ 2.5 GSa/s
• Memory depth of 512 Mpts
• Segmented editing /playback functions
• Generates vector signals with up to 500 MS/s symbol rate.
• Generates low jitter pulses with 1 ns minimum pulse
  width and 500 ps minimum edge
• Up to 1 GHz bandwidth and White Gaussian Noise with adjustable bandwidth
• PRBS up to 312.5 Mbps
• LVTTL and LVDS Digital bus options for digital signal sourcing  up to 1 Gbps
• Includes popular analog/digital modulation types, sweeping and bursting functions
• Enhanced dual-channel operation functions: inter-channel tracking, coupling, and copying
• Dual-channel superposition function
• Mutual modulation between channels
• The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
• High precision Frequency Counter
• 5-inch capacitive touch screen with a resolution of 800×480
• External mouse and keyboard operation
• WebServer to control the instruments remotely without downloading software
• Includes 10 MHz In, 10 MHz Out, Trigger In/Out, and Marker sync connections
• Full SCPI command manual for easy integration into test systems
