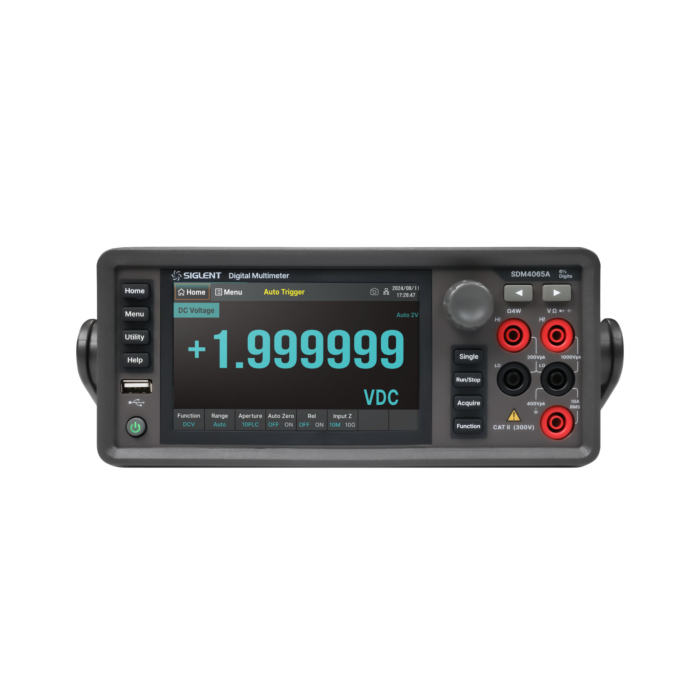

Siglent SDM4065A 6,5 siffer multimeter

The SDM4065A digital multimeter are designed with 6 ½ digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.

It provides a convenient and versatile solution for test applications and is an ideal tool for R&D burn-in and production testing.

Key Features

• Real 6½ digit (2,200,000 count) readings resolution.
• True-RMS AC Voltage and AC Current Measurements
• Up to 50k rdgs/s of measurement speed
• 512MB RAM, capable of saving up to 2M readings for caching, support timestamp
• 256 MB Nand Flash, supports storage of various types of files such as readings, images, configuration files
• Support automatic switching between 10 A high current and 3 A low current measurement modes, and can test up to 30 A when paired with an external shunt
• Data Log Function, 0.1 s ~ 3600 s interval, up to 100 hours of logging time.
• Support standard SCPI remote control commands.
• EasyDMM-X host computer control and sampling software
• Communications interface: USB Device (optional USB-GPIB adapter), USB Host, LAN
• web server
• Remote access support for VNC

Download Siglent SDM4065A datasheet
