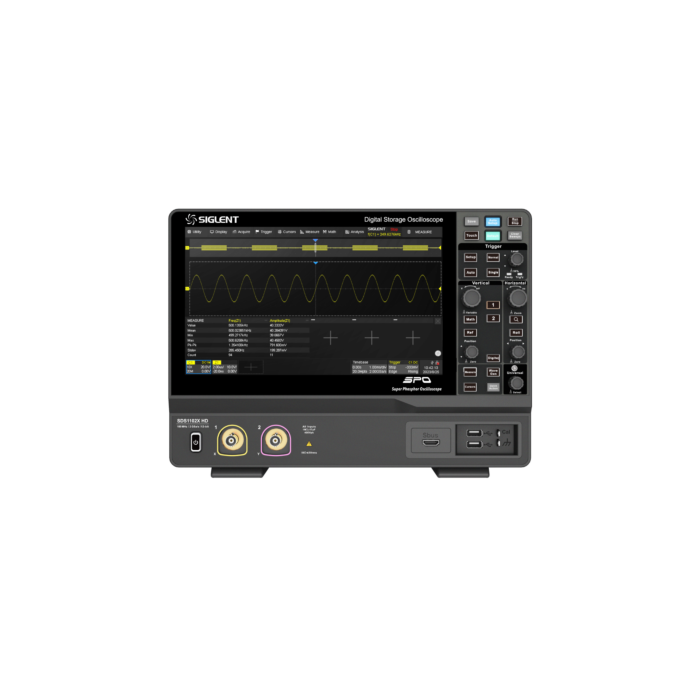

Siglent SDS1102X HD 12-Bit 100MHz 2-kanals oscilloskop

kr 14 120,00 kr 11 296,00
Varenummer
101591
  • 2 Channels
  • 100 MHz bandwidth
  • 12-bit high resolution
  • Real-time sampling rate up to 2 GSa/s
  • Memory depth up to 100 Mpts. / channel
  • Waveform capture rate up to 500,000 wfm/s (Sequence mode)
  • 10" touch screen, support for external mouse and keyboard

SIGLENT SDS1000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit Analog-Digital Converters and front ends with excellent noise floor performance.

SDS1000X HD are available in 2 / 4 channels with a bandwith of 100 MHz or 200 MHz, they have maximum record length of 100 Mpts, and have MSO / mixed signal analysis ability with optional 16 digital channels .

The SDS1000X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode.

SDS1000X HD also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering.

It features great "tools" such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities as well as serial decoding are also features of the SDS1000X HD.

There is also an option for a 25 MHz arbitrary waveform generator.

The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Key Features

  • 2 analog channels, 100 MHz bandwidth
  • 12-bit High Resolution
    • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
    • Front ends with 70 μVrms noise floor @ 200 MHz bandwidth
  • SPO technology
    • Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Up to 100 Mpts record length
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported) , Qualified, Nth edge, Delay, Setup/Hold time.
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD(decode only), FlexRay(decode only)
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
  • Automatic measurements on 50+ parameters, supports statistics with  histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
  • 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
  • Abundant data analysis functions such as Search, Navigate, Counter, Bode plot and Power Analysis
  • High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
  • 16 digital channels (Probe optional)
  • 25 MHz waveform generator(optional)
  • Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
  • Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.



Last ned datablad for Siglent SDS1000X HD series



Mer informasjon
ProdusentSiglent
ProduktnrSDS1102X HD
Båndbredde100 MHz
Capture rate120,000 wfm/s, Sequence mode up to 500,000 wfm/s
Samplingshastighet2 GSa/s
Kanaler2
Resolution12-Bit
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
LABView driverJa
