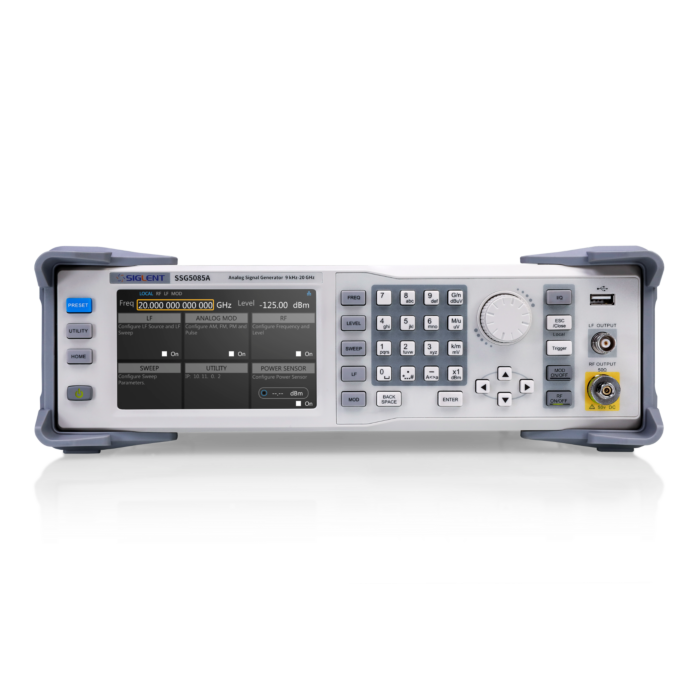

Siglent SSG5085A 9 KHz - 20 GHz RF Signalgenerator

Siglent SSG5085A microwave signal generator output frequency range from 9 kHz to 20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions.

With standard OCXO reference hardware module inside ensures high-precision and high stability signal output.

It is designed for communication, aerospace, national defense and other fields, and it is suitable for various application scenarios such as R&D and production.

Key Features

• Frequency range CW MODE 9 KHz - 20 GHz
• 0.001 Hz frequency setting resolution
• Level setting range: -130 dBm ~ 25 dBm
• Phase Noise: -120 dBc / Hz @ 1 GHz,20 kHz offset (typ.)
• Level error ≤ 0.7 dB (typ.)
• Provides AM, FM, PM analog modulation with internal, external, or Int+Ext source
• Single pulse, double pulse, and pulse train generator (option)
• The power meter control kit can easily use the power meter to measure power, control power output, and correct line loss
• 5-inch TFT capacitive touch screen, mouse, and keyboard support
• Web browser for easy remote control over LAN
• Standard interfaces include USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Download Siglent SSG5000A series datasheet
