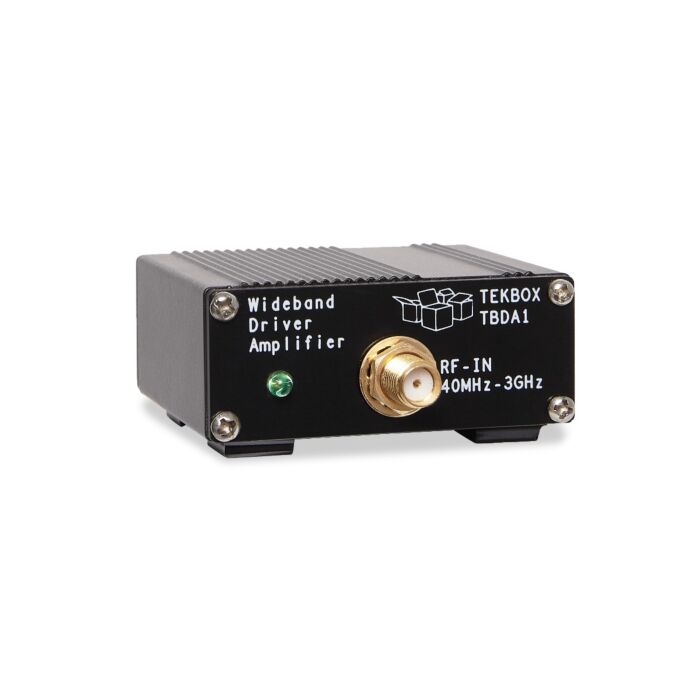

Tekbox TBDA1/14 14dB RF bredbåndforsterker
kr 2 615,00 kr 2 092,00
Varenummer
100286
TBDA1 14dB 40 MHz - 3 GHz bredbånds forsterkere er en allsidige byggestein som enkelt kan integreres i laboratorieoppsett.
TBDA1 wideband driver amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a frequency range of 40MHz to 3GHz and an output power of + 22 dBm at 1dB compression, they are ideal to boost the amplitude of low power RF sources or to drive power amplifier stages. The TBDA1 wideband amplifiers are available with 14dB or 28dB gain.
TBDA1/14dB
Input: 50 Ohm, SMA female
Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 115mA, Mini-USB-B connector
Maximum supply voltage: 5.5V
Maximum input power: +20dBm
1dB output compression point @ 40MHz: +21.5dBm
1dB output compression point @ 2 GHz: +22.5dBm
3rd order output intercept point @ 40 MHz: +40dBm
3rd order output intercept point @ 2 GHz: +43dBm
Reverse isolation S12: -20dB
Noise Figure: 3 … 4 dB
Gain:
|
25 MHz |
50 MHz |
100 MHz |
500 MHz |
1 GHz |
1.5 GHz |
2 GHz |
2.5 GHz |
3 GHz |
|
12 dB |
13.8 dB |
14.2 dB |
14.2 dB |
14.1 dB |
14.2 dB |
13.6 dB |
13.8 dB |
14 dB |
| Produsent | TekBox |
|---|---|
| Produktnr | TBDA1/14 |
