Tekbox TBGP-250/140 Roll Up Ground Plane

Many EMC pre-compliance test set ups require a ground plane, not every lab has the necessary space for permanent installation of a sheet metal ground plane and this is where the Tekbox TBGP-250/140 “roll up” ground plane comes handy.

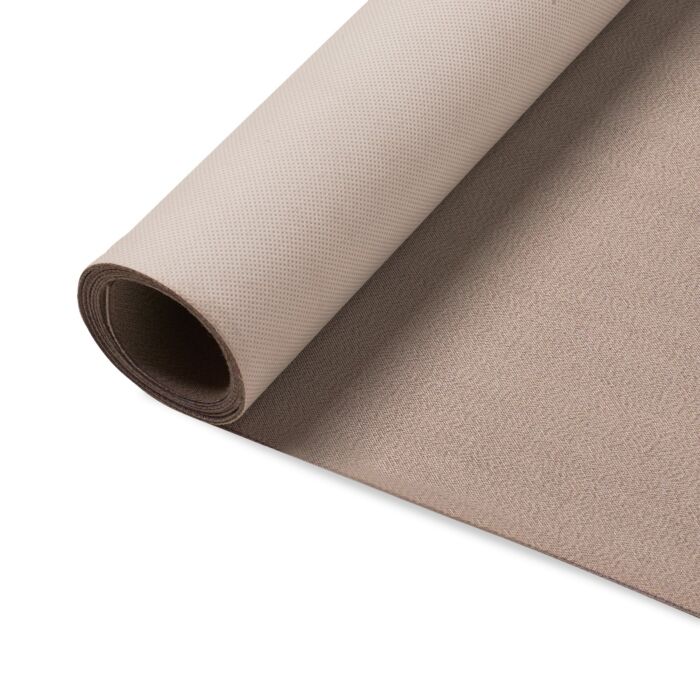

The ground plane can be rolled up after use and stored inside its storage tube in a corner of the lab. The ground plane is composed from a conductive fabric bonded to a fleece.

Features

• Fabric dimensions: 250 cm x 140 cm
• Fabric thickness: 0.7 mm
• Fabric weight: 1.1 kg
• Fabric material: Polyester 45% + Silver 55% conductive fabric, fleece
• Contact block dimensions: 99 mm x 40 mm x 7.2 mm
• Contact block weight: 0.23 kg
• Contact block material: nickel plated
