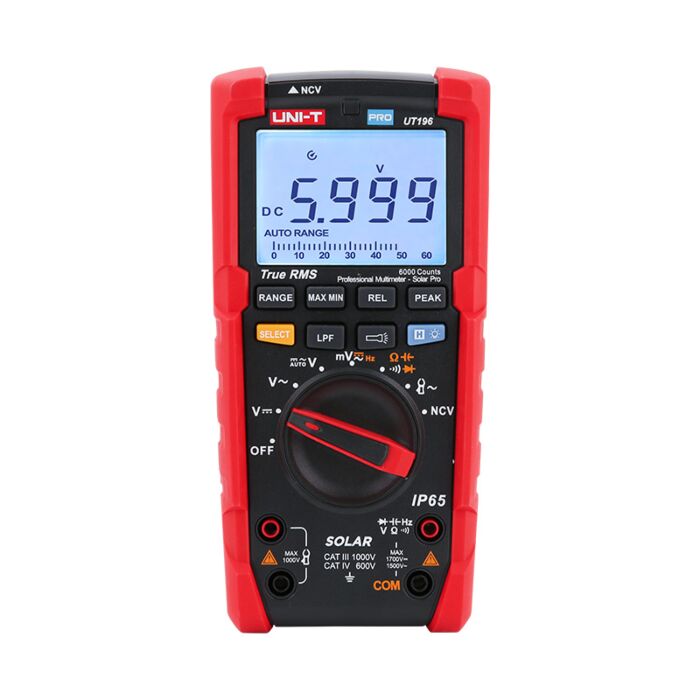

Ideal multimeter for solar power system maintenance.
UNI-T UT196 is a rugged meter designed for technicians who work in harsh environments indoor and outdoor, This multimeter offers IP65 protection and able to withstand a 2m drop as well.
UT196 can measure up to 1700V DC and 1500V AC voltages, and 3000A AC current with an optional current clamp sensor.
UT196 solar digital multimeter is designed with 1700V DC, 1500Vrms AC overload protection and tested for safe usage in CAT III 1000V, CAT IV 600V environments.
| Specifications | Range | UT196 |
| DC voltage(V) | 1700V | ±(0.2%＋5) |
| AC voltage(V) | 1500V | ±(0.8%＋3) |
| Frequency (Hz) | 1MHz | ±(0.08%+4) |
| Resistance(Ω) | 60MΩ | ±(0.8%＋2) |
| Capacitance (F) | 60mF | ±(1.9%+5) |
| Features | ||
| Display count | 6000 | |
| True RMS | √ | |
| Dual display | √ | |
| Auto range | √ | |
| NCV | √ | |
| Diode test | √ | |
| Continuity | √ | |
| Relative mode | √ | |
| Max/Min | √ | |
| Peak hold | √ | |
| Low pass filter(LPF) | √ | |
| Audible visual indication | √ | |
| Low battery indication | ＜7.5V approximately | √ |
| Data hold | √ | |
| Analog bar graph | √ | |
| Auto power off | Approximately 15 minutes | √ |
| Flashlight | √ | |
| IP rating | IP65 | |
| Drop test | 2m | |
| Safety rating | CAT III 1000V, CAT IV 600V | |
| General Characteristics | ||
| Power | 9V battery | |
| Product color | Red+Gray | |
| Product net weight | 485g | |
| Product size | 195 x 95 x 58mm | |
| Standard accessories | carrying bag, English manual, test leads, battery. | |
Last ned datablad for UNI-T UT196
| Produsent | UNI-T |
|---|---|
| Produktnr | UT196 |
